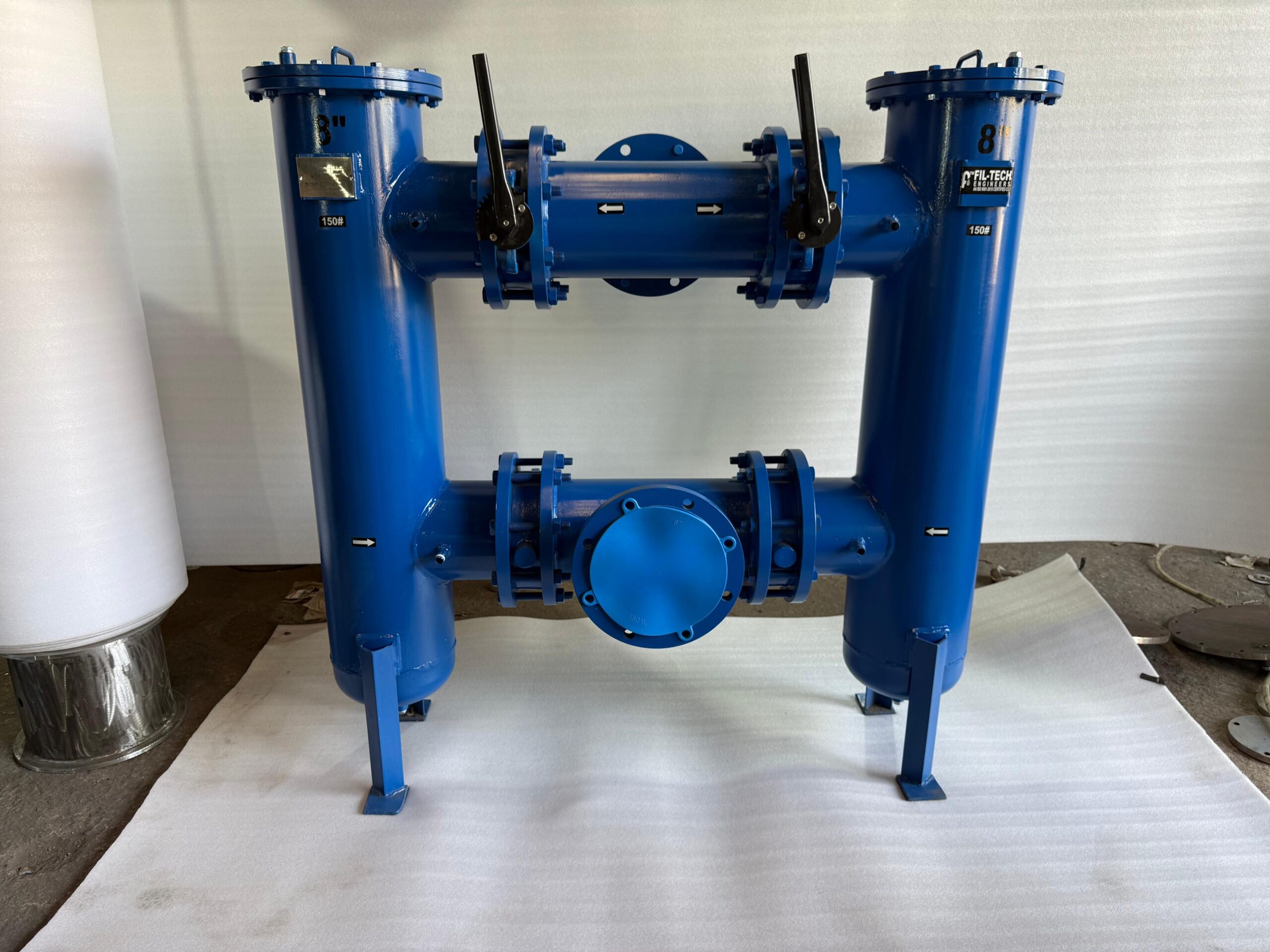

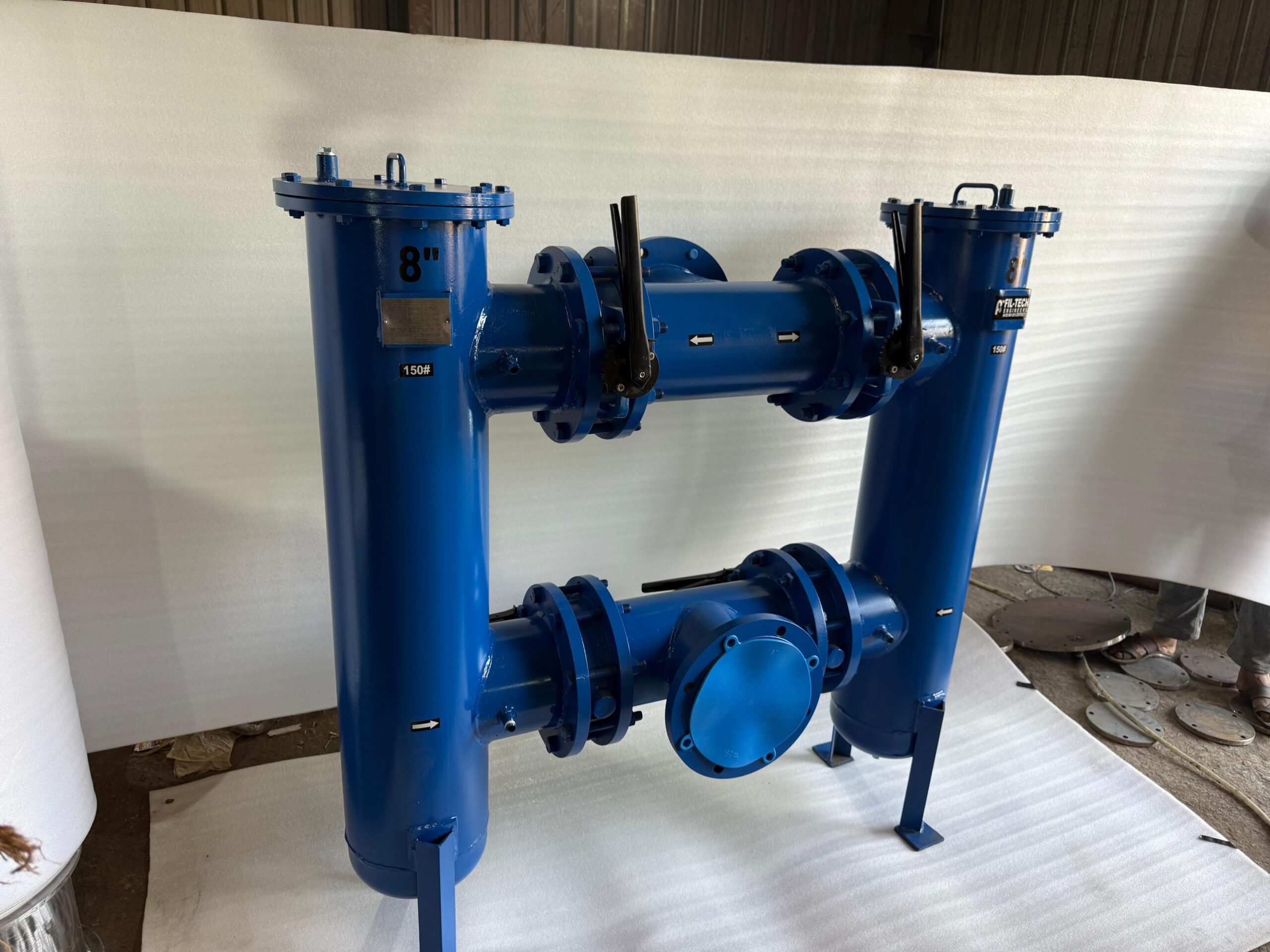

MS Duplex Type Strainer

General Specifications
Specification Details
Strainer Type Duplex (Twin Basket) Inline Strainer
Operation Continuous; one chamber active while the other is serviced (manual or automatic changeover)
Design Standards Designed and manufactured to standards like ASME B16.34, ASME Sec VIII Div 1, API 602/614, and EN 12266
Testing Standards Hydrostatic and pneumatic testing typically per API 598 or EN 12266-1
Cover Type Bolted, swing-yoke, or quick-opening clamp covers for easy maintenance

1. Core Value Proposition (Hero Section)
Primary Benefit: Emphasize zero-downtime filtration. Unlike simplex strainers,
a duplex system allows for continuous operation by switching flow between two chambers when one needs cleaning.
Key Messaging: “Uninterrupted Fluid Protection for Critical Industrial Pipelines”.

2. Technical Specifications & Product Pages
Engineers require detailed specs to ensure compatibility. Include a searchable table or downloadable datasheets with:
Body Materials (MOC): Cast Iron, Carbon Steel (ASTM A105/A106), Stainless Steel (SS304/SS316/SS316L), and Super Duplex Steel (ASTM A790).
Size Range: Standard offerings from ½” up to 24″ (DN15 to DN600), with custom sizes up to 60″.
Pressure & Temperature Ratings: Standard Class 150, 300, and 600. Capability for high temperatures up to 450°C.
Filtration Levels: Mention a wide range from 5 to 3000 microns using various mesh or perforated basket designs.
Changeover Mechanisms: Detail options like 3-way ball valves, butterfly valves, or parallel plug valves (manual or automated).

3. Key Components & Features
Dual Chambers: Parallel filtration housings for duty and standby operation.
Diverter Valve: The “heart” of the system that redirects flow without interruption.
Ease of Access: Quick-opening bolted or swing-yoke covers for tool-free maintenance.
Standard Accessories: Vent and drain ports, pressure equalisation lines, and optional clogging indicators or differential pressure gauges.

4. Industrial Applications
Showcase expertise by listing sectors where uninterrupted flow is vital:
Oil & Gas: Protecting pumps and meters from scale and rust.
Chemical Processing: Filtering aggressive fluids while safeguarding sensitive equipment.
Water Treatment: Removing sand and debris in desalination or cooling systems.
Food & Beverage: Ensuring product purity in juices, edible oils, and dairy.

5. Trust & Quality Assurance
Manufacturing Standards: Cite adherence to ASME Section VIII, Div 1 and ASME B31.3.
Testing Protocols: Mention hydrostatic and pneumatic testing as per API 598 or EN 12266.
Certifications: Highlight ISO 9001:2015, CE, or PED certifications if available.(need to mention filtech certification)
